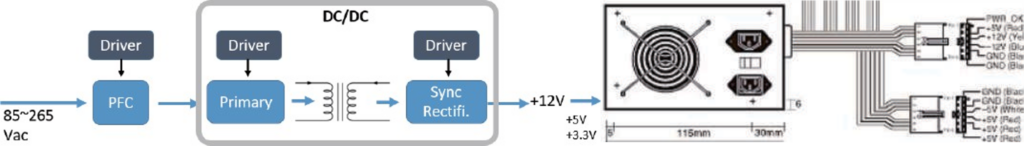

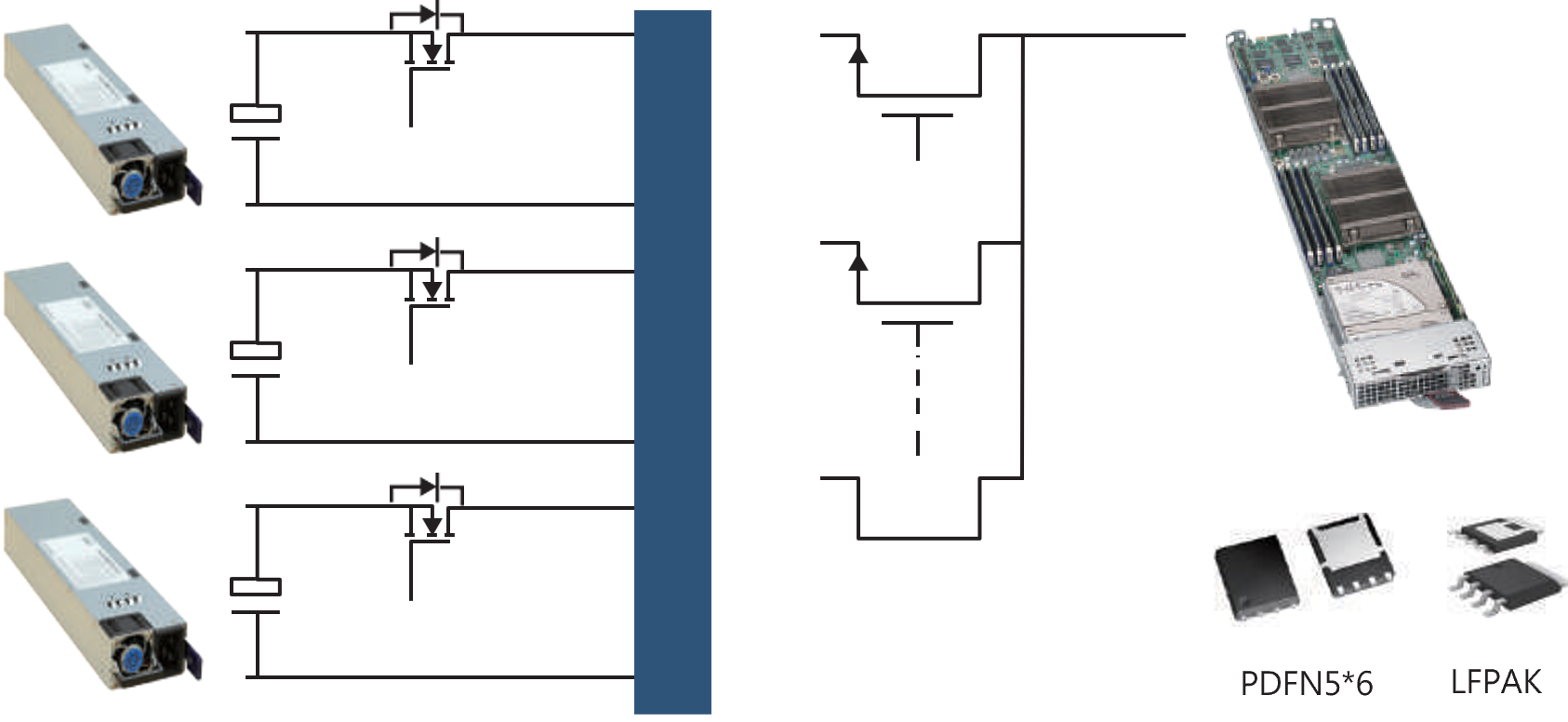

In PC power supplies and synchronous rectification applications, MOSFETs play a critical role in improving power efficiency and reducing heat generation. By using low RDS(on) MOSFETs, power supplies can minimize conduction losses, allowing for more efficient energy conversion. In SR applications, MOSFETs replace traditional diodes, reducing voltage drops and significantly improving overall efficiency. Advanced MOSFET packaging, such as LFPAK and PDFN, further enhances thermal performance and ensures reliability in high-frequency.
Advantage：

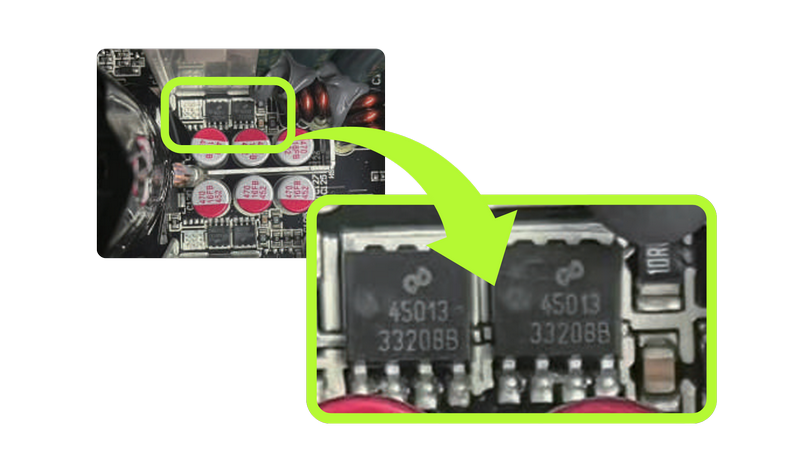

The copper clip process reduces resistance, allowing a large copper plate to evenly distribute current across its surface, preventing localized hotspots. This enhances the chip’s short-circuit current handling capability.
- LFPAK 5x6 gull-wing leads –Improved solderability for easier assembly.
- 40V SR series –Guaranteed breakdown voltage (BV) of 45V.
- Industrial-grade reliability –Qualified at 175°C.
- Moisture Sensitivity Level (MSL) 1 –Highest reliability against moisture-related damage.
Competitor NEXPERIA 1R0
Competitor NEXPERIA 1R0
PSU Load Condition : 100% load
CH1(Yellow): Vds_SR
(Drain-Source Voltage of SR)
CH3(Pink): Vout
(Output Voltage)

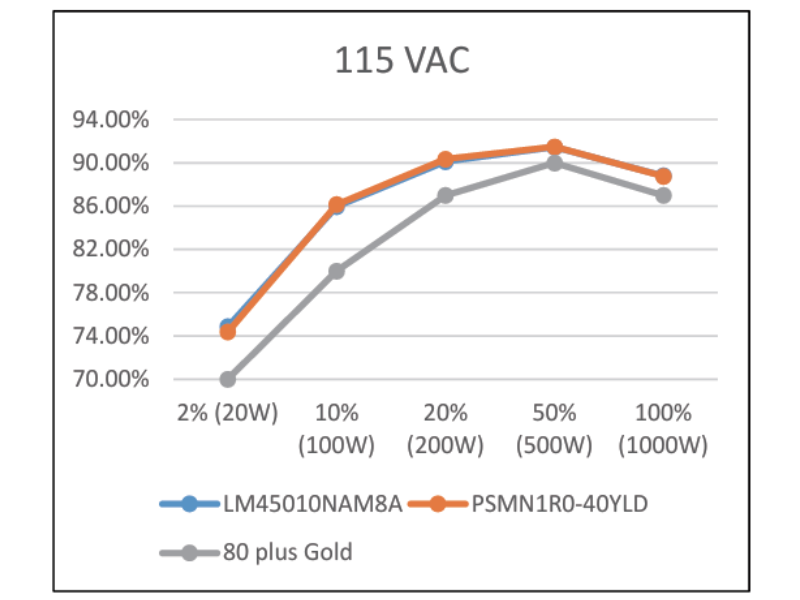

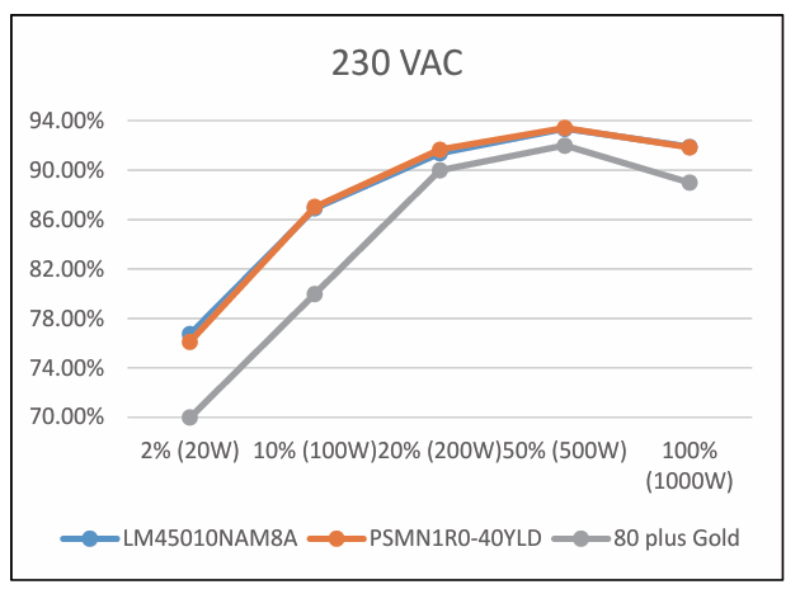

The high conversion efficiency, exceeding 89% at 1Ω, demonstrates optimized power management. Parallel
configurations improve load distribution, ensuring stable performance across different resistance levels.

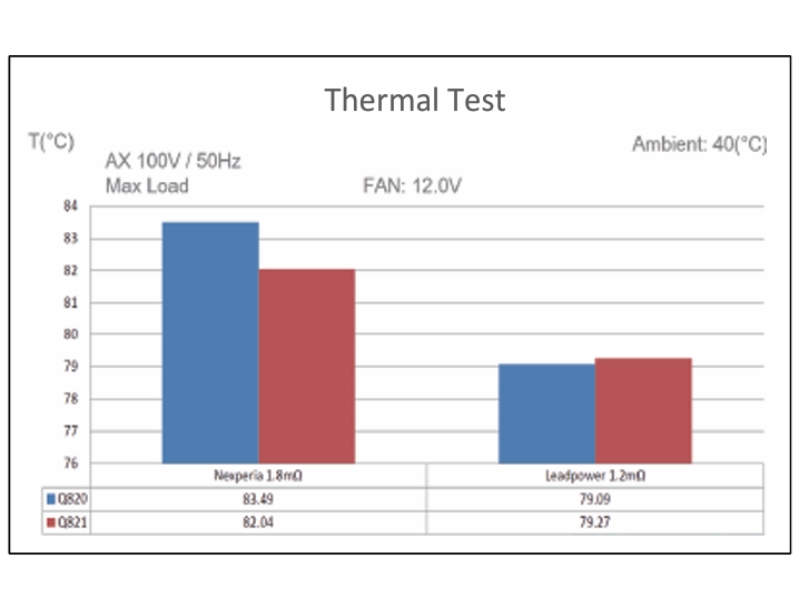

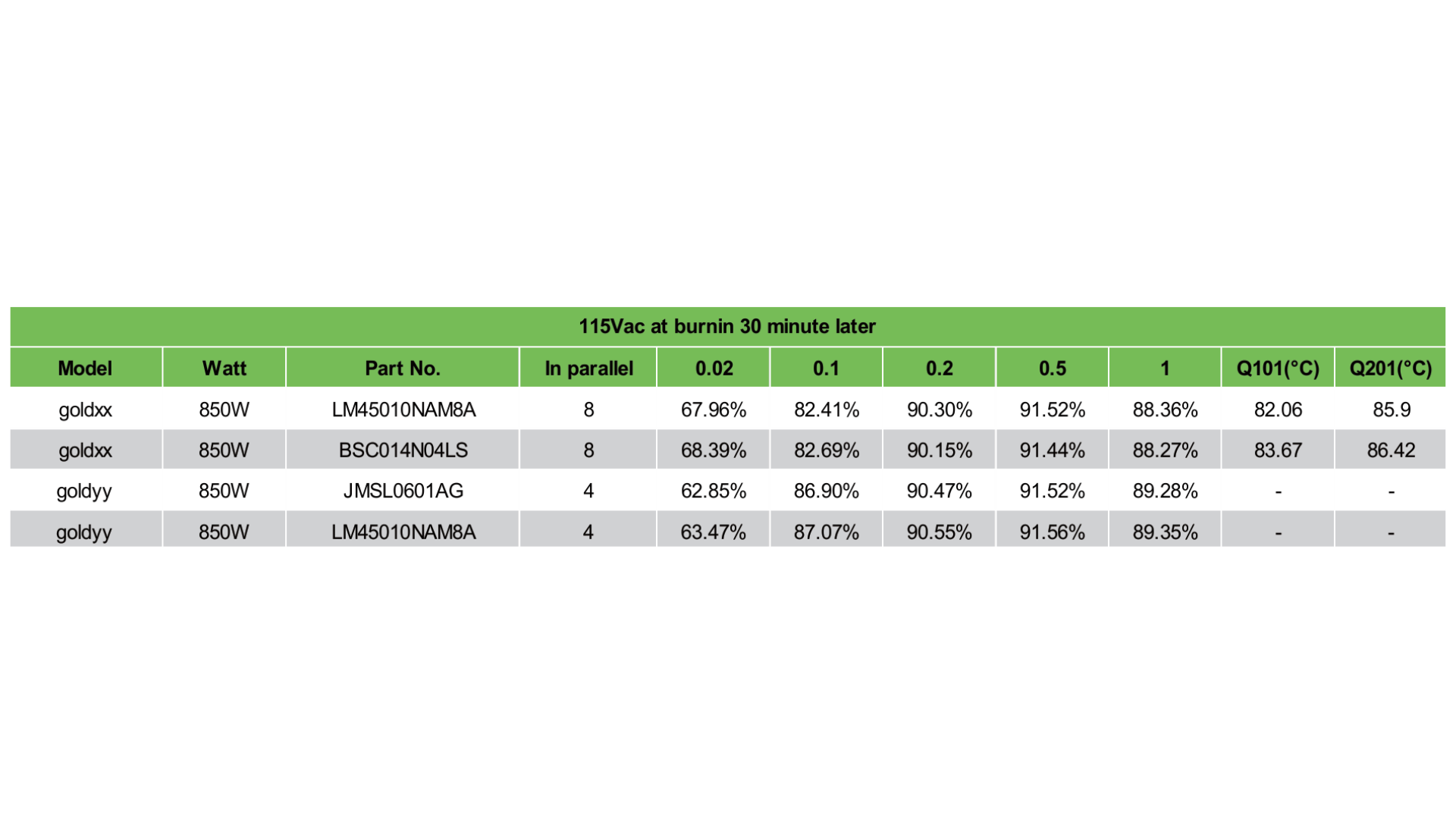

Thermal performance remains within safe operating limits, with Q101 and Q201 temperatures well-regulated.
These results validate the reliability and efficiency of the selected MOSFETs, making them ideal for high-power
applications requiring consistent performance, low losses, and effective heat dissipation.
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 60 | 20 | 142 | 125 | 3.3 | - | - | - | 3 | 4 | 5607 | 1187 | 99 | - | 83.4 | 29.4 | 13.6 | 51 | 65 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 60 | 20 | 142 | 125 | 2.6 | 4.2 | - | - | 1.7 | 2.5 | 5155 | 1331 | 193 | 45 | 93.7 | 20.4 | 20.5 | 45 | 44 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 207 | 94 | 1.4 | - | - | - | 1.7 | 2.3 | 3792 | 1260 | 72 | 23 | 50 | 12 | 5 | 57 | 81 | |
| Common Part | LFPAK56 | 150 | Industrial | Single | N | NA | 45 | 20 | 214 | 104 | 1.3 | 2 | - | - | 1.6 | 2.5 | 5830 | 1439 | 80 | - | 87.5 | 19.3 | 17.3 | 45.1 | 39 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 181 | 94 | 1.25 | - | - | - | 2.9 | 3.5 | 3504 | 1144 | 60 | - | 47 | 18 | 8 | 48 | 70 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 234 | 125 | 1.1 | - | - | - | 3 | 3.5 | 5236 | 1480 | 35 | - | 68 | 26 | 13 | 55 | 63 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 323 | 166 | 0.8 | - | - | - | 2.9 | 3.5 | 6281 | 2159 | 103 | - | 83 | 25 | 12 | 68 | 98 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 358 | 167 | 0.7 | 1.35 | - | - | 1.7 | 2.3 | 6210 | 2064 | 118 | 44 | 87 | 17 | 15 | 62 | 92 | |
| Common Part | PDFN-56 | 175 | Industrial | Single | N | NA | 40 | 20 | 120 | 62.5 | 2.4 | - | - | - | 3 | 4 | 2163 | 690 | 57 | - | 30 | 10 | 5 | 32 | 22 | |
| Common Part | PDFN-56 | 175 | Industrial | Single | N | NA | 40 | 20 | 132 | 63 | 2 | 4.4 | - | - | 1.7 | 2.3 | 2303 | 741 | 73 | 16 | 33 | 8 | 5 | 36 | 27 | |
| Common Part | PDFN-56 | 175 | Industrial | Single | N | NA | 40 | 20 | 211 | 115 | 1.7 | - | - | - | 3 | 4 | 6788 | 605 | 453 | 80.5 | 113 | 45.2 | 36 | 28 | 22.4 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 30 | 20 | 61 | 31 | 5.3 | 8.5 | - | - | 1.7 | 2.2 | 772 | 588 | 40 | 5 | 11 | 2 | 1 | 27 | 12 | |
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
