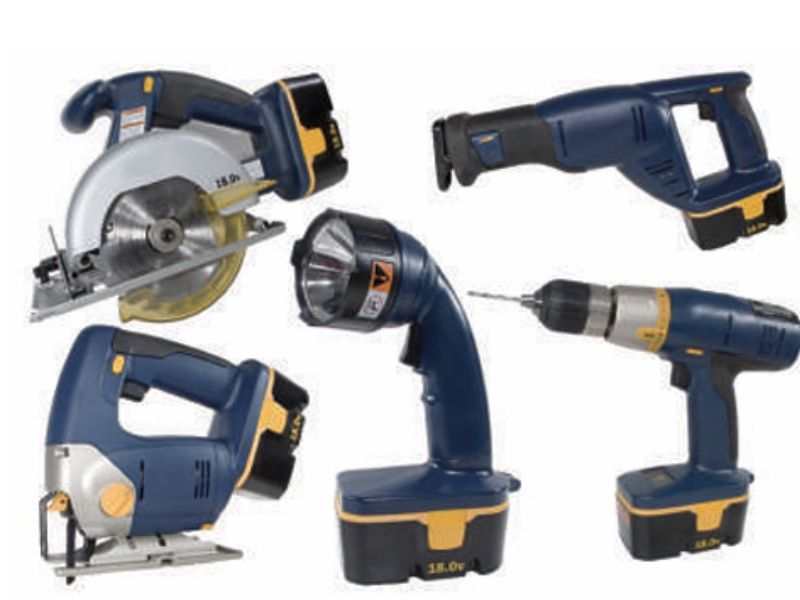

Power tools are tools driven or operated by electric power, usually characterized by high speed or high output,
thereby saving working time and effort. Typically, this term refers to handheld tools such as electric screwdrivers,
electric drill drivers, electric saws, and electric sanders.
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | TO-252 | 150 | Industrial | Single | N | NA | 150 | 20 | 7.7 | 37 | 255 | 280 | - | - | 2 | 2.5 | 712 | 19 | 7.8 | 6.3 | 13 | 1.86 | 2.4 | 30 | 15 | |
| Common Part | TO-252 | 150 | Industrial | Single | N | NA | 100 | 20 | 12 | 2.1 | 100 | 113 | - | - | 1.7 | 2.5 | 668 | 39 | 17 | 7.25 | 15.3 | 1.9 | 2.9 | 17.6 | 12.6 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 181 | 94 | 1.25 | - | - | - | 2.9 | 3.5 | 3504 | 1144 | 60 | - | 47 | 18 | 8 | 48 | 70 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 323 | 166 | 0.8 | - | - | - | 2.9 | 3.5 | 6281 | 2159 | 103 | - | 83 | 25 | 12 | 68 | 98 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 234 | 125 | 1.1 | - | - | - | 3 | 3.5 | 5236 | 1480 | 35 | - | 68 | 26 | 13 | 55 | 63 | |
| Common Part | PDFN-56 | 175 | Industrial | Single | N | NA | 40 | 20 | 120 | 62.5 | 2.4 | - | - | - | 3 | 4 | 2163 | 690 | 57 | - | 30 | 10 | 5 | 32 | 22 | |
