Server Hot swap

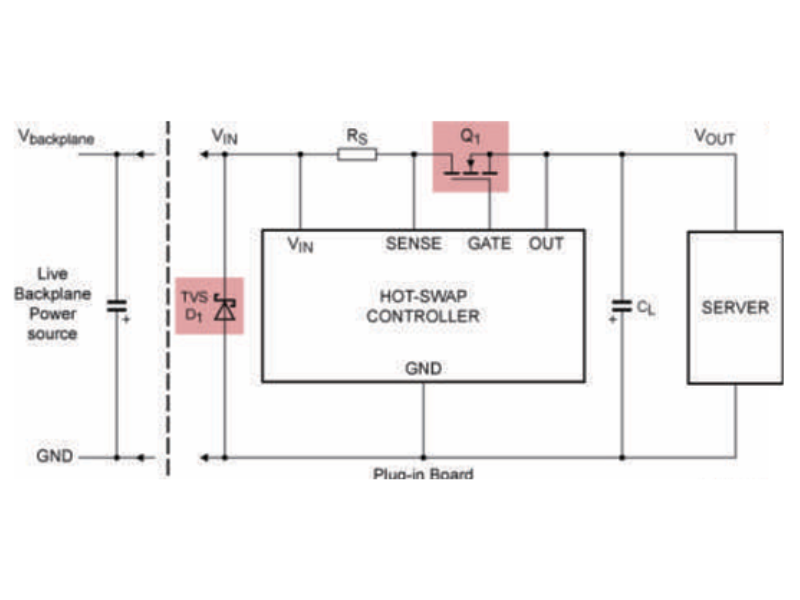

In server hot swap applications, power MOSFETs enable smooth power transitions when adding or replacing
components without shutting down the system. Low RDS(on) MOSFETs reduce conduction losses , ensuring
efficient inrush current control and protecting against power surges. Their fast switching capabilities provide
reliable power management, making them essential for maintaining uptime in critical server environments.
Ori-PSMN2R6-40YS

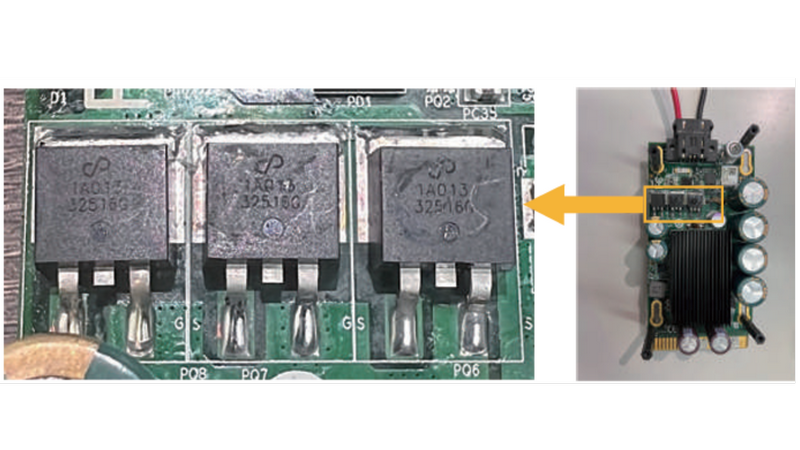

The actual test comparison between
PSMN4R8-100BSE and LM1A013NHV2A
shows that Leadpower achieves higher
efficiency and better thermal performance.
It provides stable voltage supply during
operation, preventing overvoltage
damage to components.

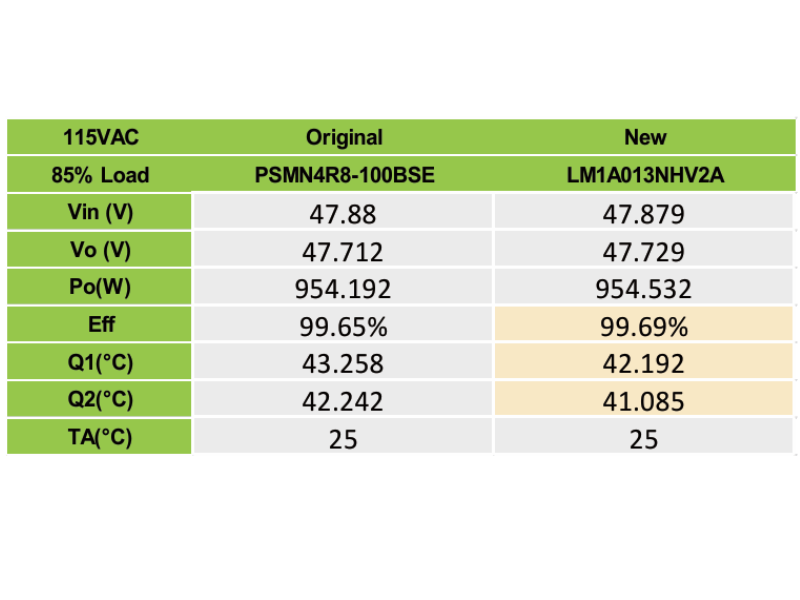

Efficiency Comparison
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | TO-220 | 150 | Industrial | Single | N | NA | 100 | 20 | 122 | 125 | 4.8 | - | - | - | 3 | 4 | 4175 | 1190 | 35 | 47(6V) | 72.8 | 21.5 | 20.6 | 40.4 | 80.2 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 122 | 192 | 4.6 | - | - | - | 3 | 4 | 4176 | 1190 | 36 | - | 72.7 | 21.6 | 20.7 | 40.4 | 80.15 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 205 | 192 | 4.6 | 6.6 | - | - | 2 | 3 | 4930 | 1130 | 90 | 47.5 | 93.2 | 20 | 21 | 55 | 84 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 142 | 125 | 4.4 | - | - | - | 3 | 4 | 4175 | 1190 | 35 | - | 72.8 | 21.5 | 20.7 | 40.4 | 80.2 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 245 | 284 | 3.2 | - | - | - | 3 | 4 | 7424 | 1983 | 59 | - | 123.6 | 34.7 | 27.6 | 84.9 | 186.5 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 204 | 313 | 3.1 | - | - | - | 3 | 4 | 8532 | 2380 | 72 | - | 147.4 | 42.4 | 39.2 | 80.8 | 160.3 | |
| TOLL | 175 | Industrial | Single | N | NA | 100 | 20 | 229 | 250 | 2.5 | - | - | - | 3 | 4 | 8532 | 2380 | 72 | - | 147.4 | 42.2 | 39.2 | 80.8 | 160.3 | ||
| Common Part | TO-220 | 175 | Industrial | Single | N | NA | 100 | 20 | 243 | 250 | 2.2 | - | - | - | 3 | 4 | 12340 | 3995 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Common Part | TO-263 | 175 | Industrial | Single | N | NA | 100 | 20 | 362 | 429 | 1.7 | - | - | - | 3 | 4 | 12345 | 3995 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Common Part | TO-263-6 | 175 | Industrial | Single | N | NA | 100 | 20 | 403 | 500 | 1.6 | - | - | - | 3 | 4 | 12340 | 3992 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Common Part | TOLL | 175 | Industrial | Single | N | NA | 100 | 20 | 395 | 313 | 1.3 | - | - | - | 3 | 4 | 13000 | 2147 | 398 | - | 231 | 70.2 | 65.7 | 120 | 400 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 80 | 20 | 200 | 188 | 2.5 | 4.3(6V) | - | - | 2.3 | 3 | 5103 | 1695 | 97 | - | 82 | 22 | 22 | 86 | 84 | |
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
