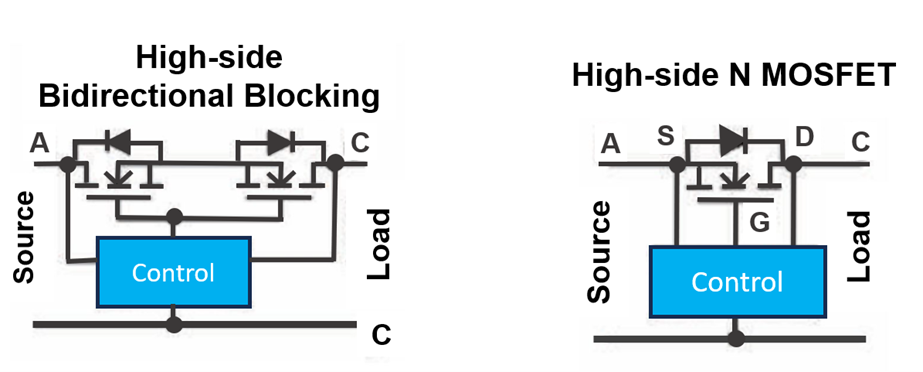

Oring is designed to be used at each power supply terminal. When one power supply experiences a short
circuit, it protects the backup power supply voltage. If a short circuit occurs from the power supply to the ground line, the diode can prevent reverse current. Therefore, the system can isolate the faulty power supply and allow the backup power supply to take over.
Ori-PSMN2R6-40YS
New-LM45013NHM8A

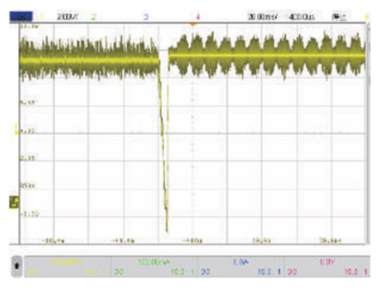

Leakage Current Test
In the dynamic load test, LM45013NHM8A as a replacement from PSMN2R6-40YS, shows that when OLP reaches the threshold/full load, PSMN2R6-40YS LFPAK can promptly recover MOS Vgs(th).

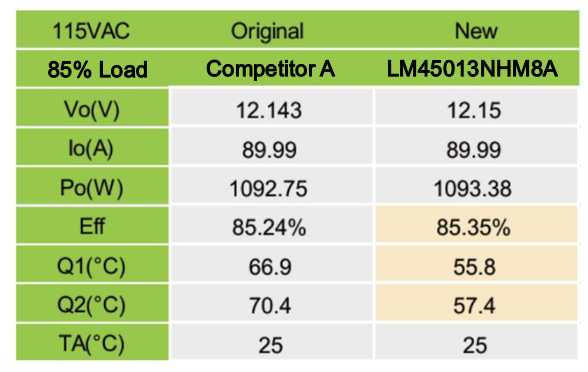

Efficiency Comparison
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 100 | 20 | 177 | 188 | 2.9 | 5 | - | - | 3 | 3.8 | 5293 | 1629 | 48 | - | 84 | 23 | 23 | 89 | 116 | |
| PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 177 | 188 | 2.9 | - | - | - | 3 | 3.8 | 5293 | 1629 | 48 | - | 84 | 23 | 23 | 89 | 116 | ||
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 80 | 20 | 200 | 188 | 2.5 | 4.3(6V) | - | - | 2.3 | 3 | 5103 | 1695 | 97 | - | 82 | 22 | 22 | 86 | 84 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 60 | 20 | 142 | 125 | 3.3 | - | - | - | 3 | 4 | 5607 | 1187 | 99 | - | 83.4 | 29.4 | 13.6 | 51 | 65 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 60 | 20 | 142 | 125 | 2.6 | 4.2 | - | - | 1.7 | 2.5 | 5155 | 1331 | 193 | 45 | 93.7 | 20.4 | 20.5 | 45 | 44 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 207 | 94 | 1.4 | - | - | - | 1.7 | 2.3 | 3792 | 1260 | 72 | 23 | 50 | 12 | 5 | 57 | 81 | |
| Common Part | LFPAK56 | 150 | Industrial | Single | N | NA | 45 | 20 | 214 | 104 | 0.99 | 2 | - | - | 1.6 | 2.5 | 5830 | 1439 | 80 | - | 87.5 | 19.3 | 17.3 | 45.1 | 39 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 181 | 94 | 1.25 | - | - | - | 2.9 | 3.5 | 3504 | 1144 | 60 | - | 47 | 18 | 8 | 48 | 70 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 323 | 166 | 0.8 | - | - | - | 2.9 | 3.5 | 6281 | 2159 | 103 | - | 83 | 25 | 12 | 68 | 98 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 234 | 125 | 1.1 | - | - | - | 3 | 3.5 | 5236 | 1480 | 35 | - | 68 | 26 | 13 | 55 | 63 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 40 | 20 | 132 | 63 | 2 | 4.4 | - | - | 1.7 | 2.3 | 2303 | 741 | 73 | 16 | 33 | 8 | 5 | 36 | 27 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 40 | 20 | 120 | 62.5 | 2.4 | - | - | - | 3 | 4 | 2163 | 690 | 57 | - | 30 | 10 | 5 | 32 | 22 | |
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
