PD Adapter
In PD (Power Delivery) adapters, MOSFETs enhance power efficiency and fast charging capabilities. By providing low RDS(on) and high-speed switching, MOSFETs reduce energy loss and heat generation. This higher power output designs ensured stable voltage regulation and efficient power conversion, making them being critical role in fast-charging PD adaptors.
Advantage：
Leadpower’s MOSFETs features high efficiency, low RDS (on) and high-speed switching, achieving the perfect balance in charging speed, thermal performance and reliabilities. Which means our MOSFETs absolutely plays a vital role in your supply chain.

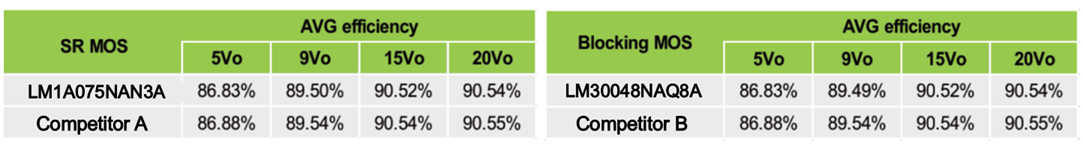

Efficiency_5V
Efficiency_5V
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 120 | 20 | 132 | 125 | 7.2 | 10.4 | - | - | 2 | 3 | 4849 | 458 | 32 | 47 | 94.7 | 19.7 | 22.3 | 73 | 138 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 150 | 20 | 108 | 114 | 9.8 | - | - | - | 3 | 4 | 4800 | 366 | 12.7 | - | 57 | 21 | 5.5 | 88 | 176 | |
| Common Part | TO-220 | 150 | Industrial | Single | N | NA | 150 | 20 | 111 | 125 | 10 | - | - | - | 3 | 4 | 4805 | 366 | 12.7 | - | 57 | 21 | 5.6 | 88 | 176 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 150 | 20 | 65 | 83 | 19.5 | - | - | - | 3 | 4 | 1960 | 130 | 8 | - | 25 | 11.1 | 2.87 | 65.9 | 130.1 | |
| Common Part | TO-220 | 150 | Industrial | Single | N | NA | 150 | 20 | 191 | 114 | 19.5 | - | - | - | 3 | 4 | 1892 | 141 | 34 | 15.2 | 24.8 | 11.1 | 2.87 | 65.9 | 130.1 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 58 | 50 | 9.2 | 14 | - | - | 2 | 3 | 1910 | 506 | 36 | 22 | 39.8 | 8.92 | 10.4 | 37 | 35 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 53 | 50 | 9.6 | 15.5(6V) | - | - | 3 | 4 | 1558 | 523 | 55 | 19.9(6V) | 30.1 | 8.8 | 8.8 | 50.8 | 40 | |
| Common Part | PDFN3.3x3.3 | 150 | Industrial | Single | N | NA | 100 | 20 | 43 | 36 | 10 | 15.5(6V) | - | - | 3 | 4 | 1560 | 525 | 55 | 20(6V) | 30.1 | 8.8 | 8.8 | 51 | 40 | |
| Common Part | TO-220 | 150 | Industrial | Single | N | NA | 100 | 20 | 64 | 83 | 10.7 | 16 | - | - | 3 | 4 | 1558 | 523 | 55 | 19.9 | 30.1 | 8.8 | 8.8 | 50.8 | 40 | |
| Common Part | PDFN3.3x3.3 | 150 | Industrial | Single | N | NA | 100 | 20 | 49 | 36 | 9.2 | 14 | - | - | 2 | 3 | 1915 | 505 | 35 | 22.1 | 40 | 8.93 | 10.5 | 37.2 | 35.1 | |
| Common Part | TO-251 | 150 | Industrial | Single | N | NA | 100 | 20 | 87 | 65.8 | 8.8 | 13 | - | - | 2 | 3 | 2115 | 580 | 38 | 22.5 | 43.3 | 8.2 | 10.8 | 45.8 | 51.2 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 87 | 66 | 8.6 | - | - | - | 3 | 4 | 2053 | 710 | 45 | 23.4(6V) | 35.5 | 10.7 | 9.6 | 42.6 | 40.5 | |
