Server Hot swap

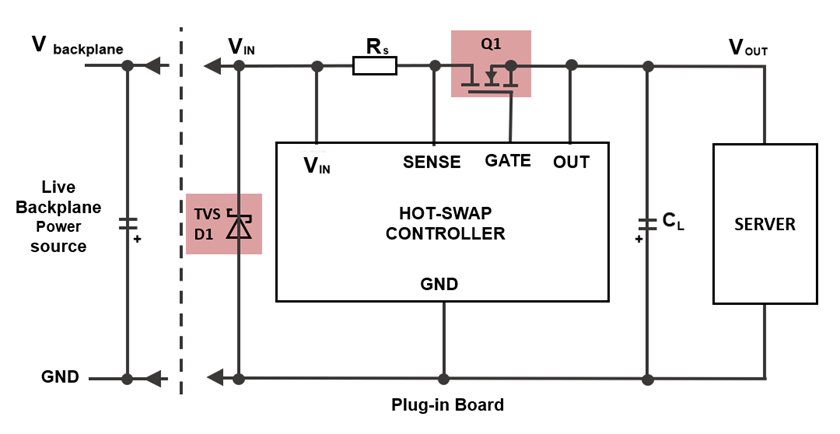

In server hot swap applications, Power MOSFETs enables smoothly add or replace power transitions component. components without shutting down the system. Low RDS(on) MOSFETs reduce conduction losses , ensuring efficient inrush current control and equipping with power surge protection. Meanwhile, our MOSFETs’ are able to provide reliable fast switching power management. To ensure the system maintains stable server performance during uptime.
Ori-PSMN2R6-40YS
The actual test comparison between
the existing product and LM1A013NHV2A
shows that Leadpower achieves higher
efficiency and better thermal performance.
It provides stable voltage supply during
operation, preventing overvoltage
damage to components.
shows that Leadpower achieves higher
efficiency and better thermal performance.
LM1A013NHV2A provides stable voltage supply during operation, preventing components from overvoltage risk.
Efficiency Comparison
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | TOLL | 175 | Industrial | Single | N | NA | 100 | 20 | 434 | 375 | 1.3 | - | - | - | 3 | 4 | 13000 | 2147 | 398 | - | 231 | 70.2 | 65.7 | 120 | 400 | |
| Common Part | TO-263 | 175 | Industrial | Single | N | NA | 100 | 20 | 362 | 429 | 1.7 | - | - | - | 3 | 4 | 12345 | 3995 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Common Part | TO-220 | 150 | Industrial | Single | N | NA | 100 | 20 | 122 | 125 | 4.8 | - | - | - | 3 | 4 | 4175 | 1190 | 35 | 47(6V) | 72.8 | 21.5 | 20.6 | 40.4 | 80.2 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 122 | 192 | 4.6 | - | - | - | 3 | 4 | 4176 | 1190 | 36 | - | 72.7 | 21.6 | 20.7 | 40.4 | 80.15 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 205 | 192 | 4.6 | 6.6 | - | - | 2 | 3 | 4930 | 1130 | 90 | 47.5 | 93.2 | 20 | 21 | 55 | 84 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 142 | 125 | 4.4 | - | - | - | 3 | 4 | 4175 | 1190 | 35 | - | 72.8 | 21.5 | 20.7 | 40.4 | 80.2 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 245 | 284 | 3.2 | - | - | - | 3 | 4 | 7424 | 1983 | 59 | - | 123.6 | 34.7 | 27.6 | 84.9 | 186.5 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 204 | 313 | 3.1 | - | - | - | 3 | 4 | 8532 | 2380 | 72 | - | 147.4 | 42.4 | 39.2 | 80.8 | 160.3 | |
| TOLL | 175 | Industrial | Single | N | NA | 100 | 20 | 229 | 250 | 2.5 | - | - | - | 3 | 4 | 8532 | 2380 | 72 | - | 147.4 | 42.2 | 39.2 | 80.8 | 160.3 | ||
| Common Part | TO-220 | 175 | Industrial | Single | N | NA | 100 | 20 | 243 | 250 | 2.2 | - | - | - | 3 | 4 | 12340 | 3995 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 80 | 20 | 200 | 188 | 2.5 | 4.3(6V) | - | - | 2.3 | 3 | 5103 | 1695 | 97 | - | 82 | 22 | 22 | 86 | 84 | |
| Common Part | TO-263-6 | 175 | Industrial | Single | N | NA | 100 | 20 | 403 | 500 | 1.6 | - | - | - | 3 | 4 | 12340 | 3992 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
