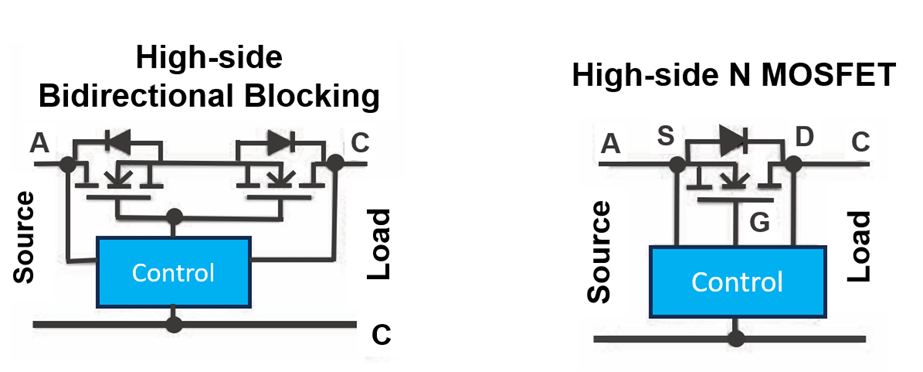

Oring technology is designed to be used at each power supply terminal. When one power supply experiences a short circuit, it protects the backup power supply voltage. If a short circuit occurs from the power supply to the ground line, the diode can prevent reverse current. Therefore, the system can isolate the faulty power supply and allow the backup power supply to take over.
Ori-PSMN2R6-40YS
New-LM45013NHM8A

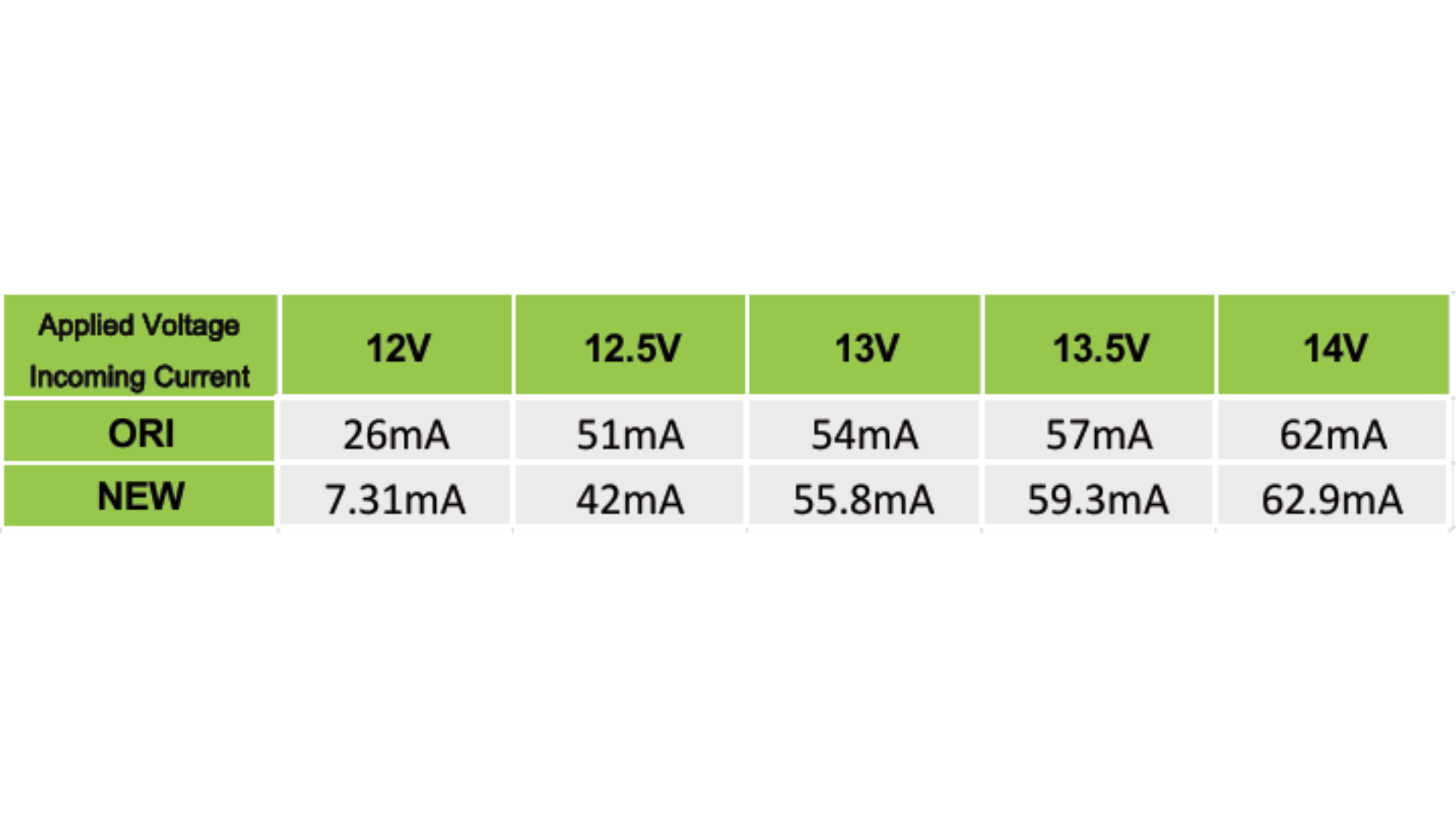

Leakage Current Test

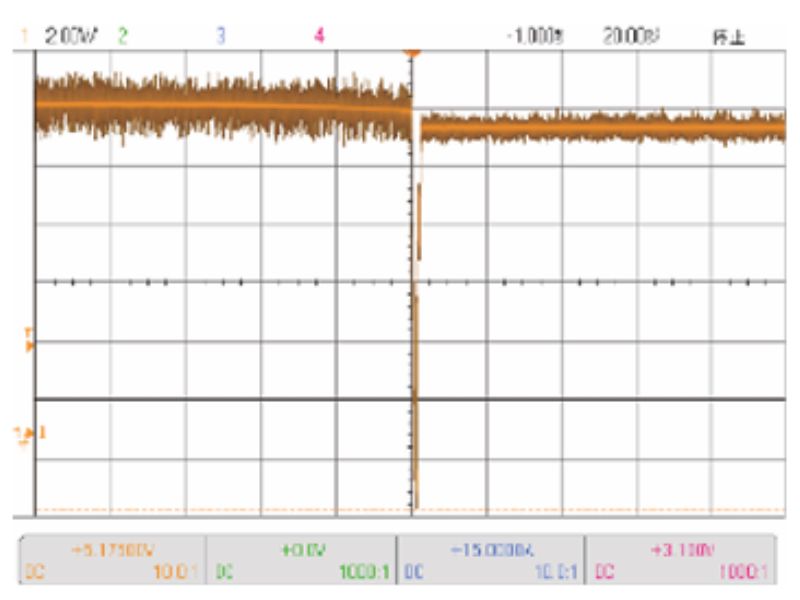

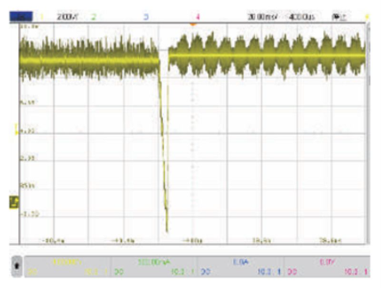

The actual test of LM45013NHM8A LFPAK as a replacement for
PSMN2R6-40YS LFPAK in dynamic load testing shows that when
OLP reaches the threshold/full load, it can quickly recover
MOS Vgs(th)

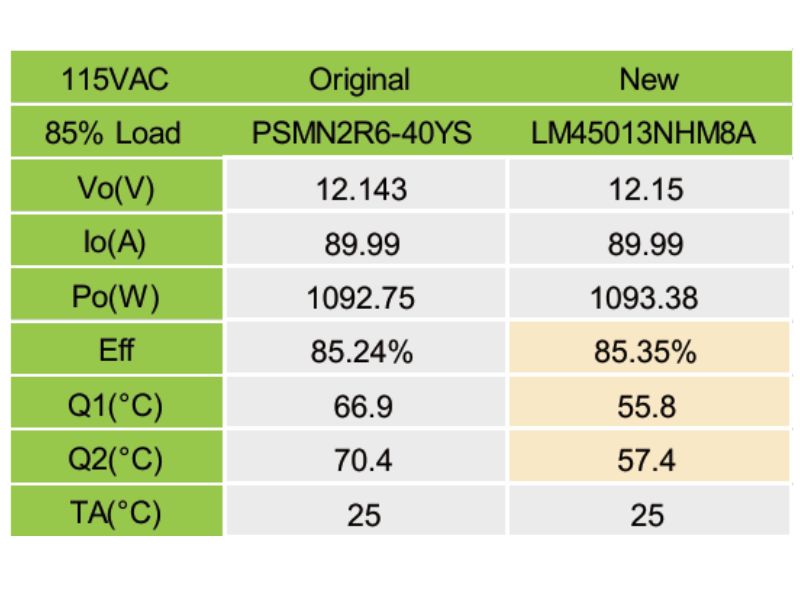

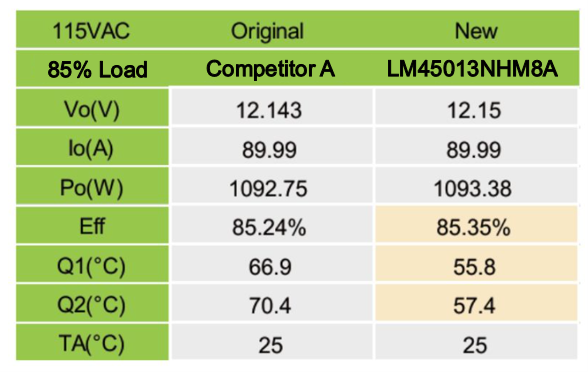

Efficiency Comparison
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 177 | 188 | 2.9 | - | - | - | 3 | 3.8 | 5293 | 1629 | 48 | - | 84 | 23 | 23 | 89 | 116 | ||
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 100 | 20 | 177 | 188 | 2.9 | 5 | - | - | 3 | 3.8 | 5293 | 1629 | 48 | - | 84 | 23 | 23 | 89 | 116 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 80 | 20 | 200 | 188 | 2.5 | 4.3(6V) | - | - | 2.3 | 3 | 5103 | 1695 | 97 | - | 82 | 22 | 22 | 86 | 84 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 60 | 20 | 142 | 125 | 3.3 | - | - | - | 3 | 4 | 5607 | 1187 | 99 | - | 83.4 | 29.4 | 13.6 | 51 | 65 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 60 | 20 | 142 | 125 | 2.6 | 4.2 | - | - | 1.7 | 2.5 | 5155 | 1331 | 193 | 45 | 93.7 | 20.4 | 20.5 | 45 | 44 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 207 | 94 | 1.4 | - | - | - | 1.7 | 2.3 | 3792 | 1260 | 72 | 23 | 50 | 12 | 5 | 57 | 81 | |
| Common Part | LFPAK56 | 150 | Industrial | Single | N | NA | 45 | 20 | 214 | 104 | 1.3 | 2 | - | - | 1.6 | 2.5 | 5830 | 1439 | 80 | - | 87.5 | 19.3 | 17.3 | 45.1 | 39 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 181 | 94 | 1.25 | - | - | - | 2.9 | 3.5 | 3504 | 1144 | 60 | - | 47 | 18 | 8 | 48 | 70 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 234 | 125 | 1.1 | - | - | - | 3 | 3.5 | 5236 | 1480 | 35 | - | 68 | 26 | 13 | 55 | 63 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 323 | 166 | 0.8 | - | - | - | 2.9 | 3.5 | 6281 | 2159 | 103 | - | 83 | 25 | 12 | 68 | 98 | |
| Common Part | PDFN-56 | 175 | Industrial | Single | N | NA | 40 | 20 | 120 | 62.5 | 2.4 | - | - | - | 3 | 4 | 2163 | 690 | 57 | - | 30 | 10 | 5 | 32 | 22 | |
| Common Part | PDFN-56 | 175 | Industrial | Single | N | NA | 40 | 20 | 132 | 63 | 2 | 4.4 | - | - | 1.7 | 2.3 | 2303 | 741 | 73 | 16 | 33 | 8 | 5 | 36 | 27 | |
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
