PC Power & PSU(SR)

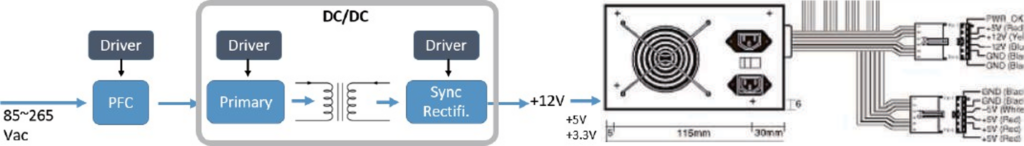

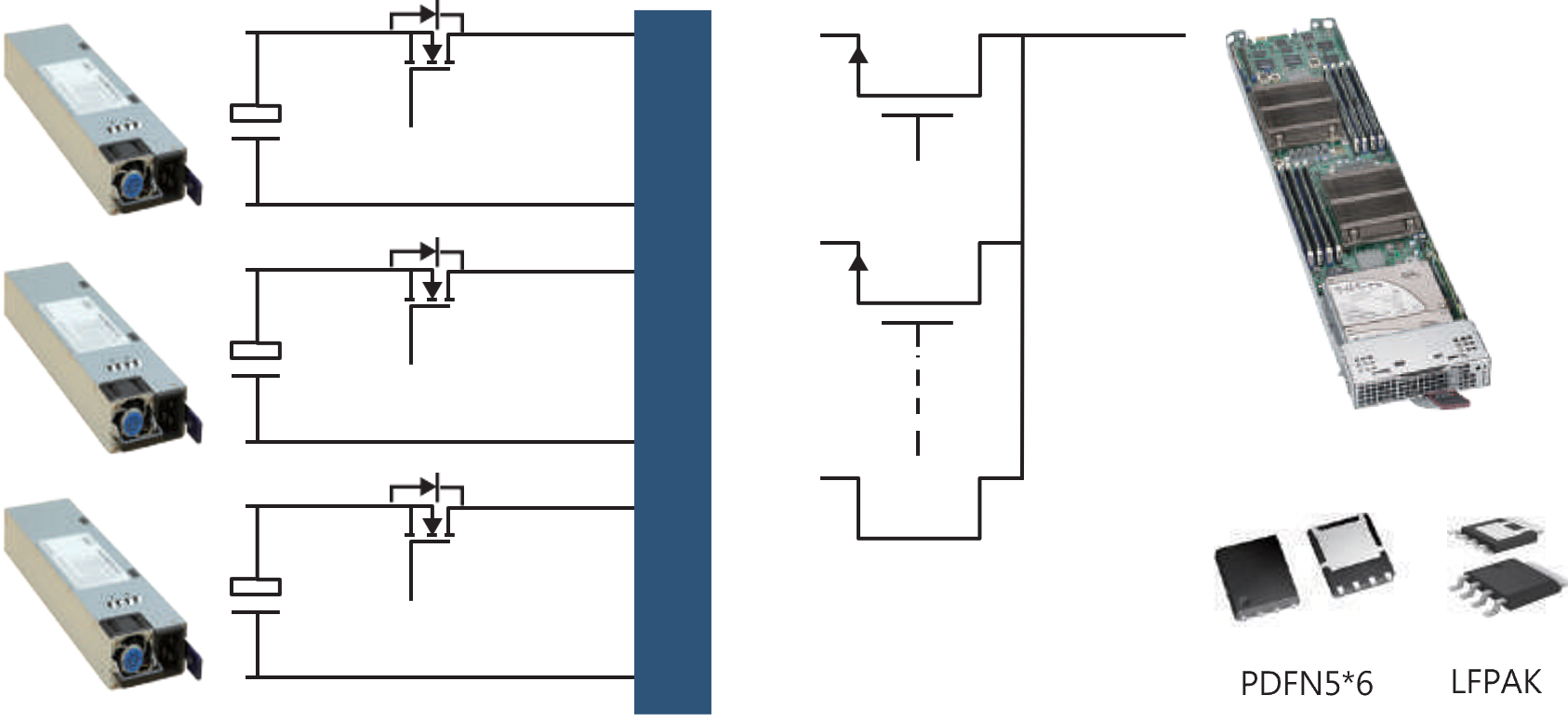

In PC power supplies and synchronous rectification applications, MOSFETs play a critical role in improving power efficiency and reducing heat generation. By using low RDS(on) MOSFETs, power supplies can minimize conduction losses, allowing for more efficient energy conversion. In SR applications, MOSFETs replace traditional diodes, reducing voltage drops and significantly improving overall efficiency. Advanced MOSFET packaging, such as LFPAK and PDFN, further enhances thermal performance and ensures reliability in high-frequency.

Advantage:

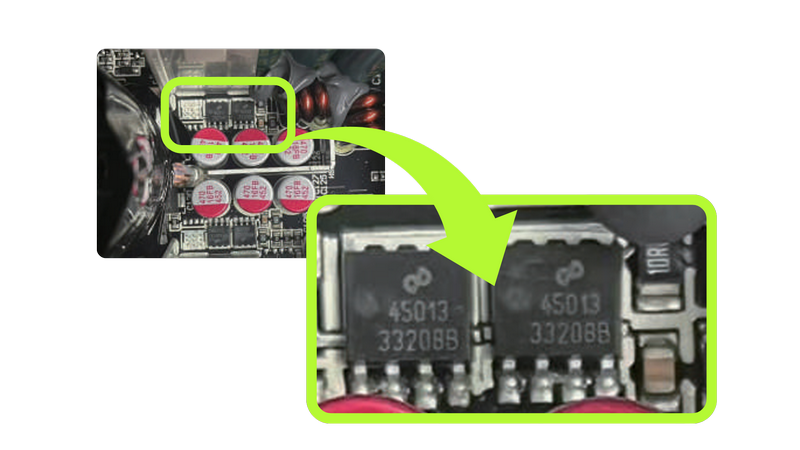

The copper clip process reduces resistance, allowing a large copper plate to evenly distribute current across its surface, preventing localized hotspots. This enhances the chip’s short-circuit current handling capability.

Competitor NEXPERIA 1R0

Competitor NEXPERIA 1R0

 PSU Load Condition : 100% load
CH1(Yellow): Vds_SR
(Drain-Source Voltage of SR)
CH3(Pink): Vout
(Output Voltage)

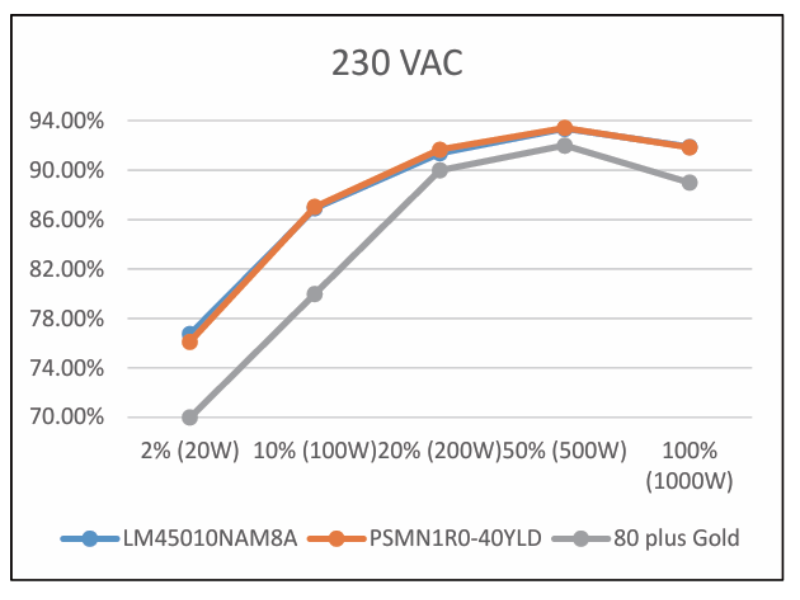

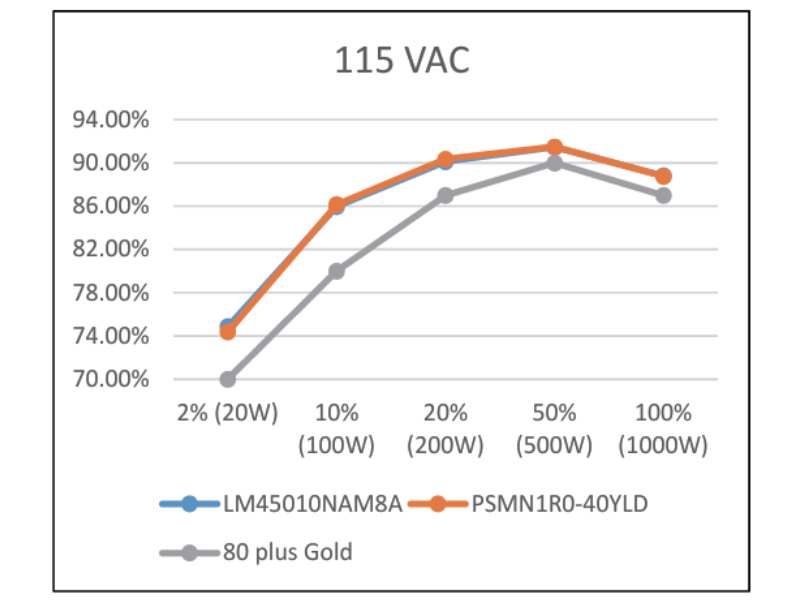

The high conversion efficiency, exceeding 89% at 1Ω, demonstrates optimized power management. Parallel
configurations improve load distribution, ensuring stable performance across different resistance levels.

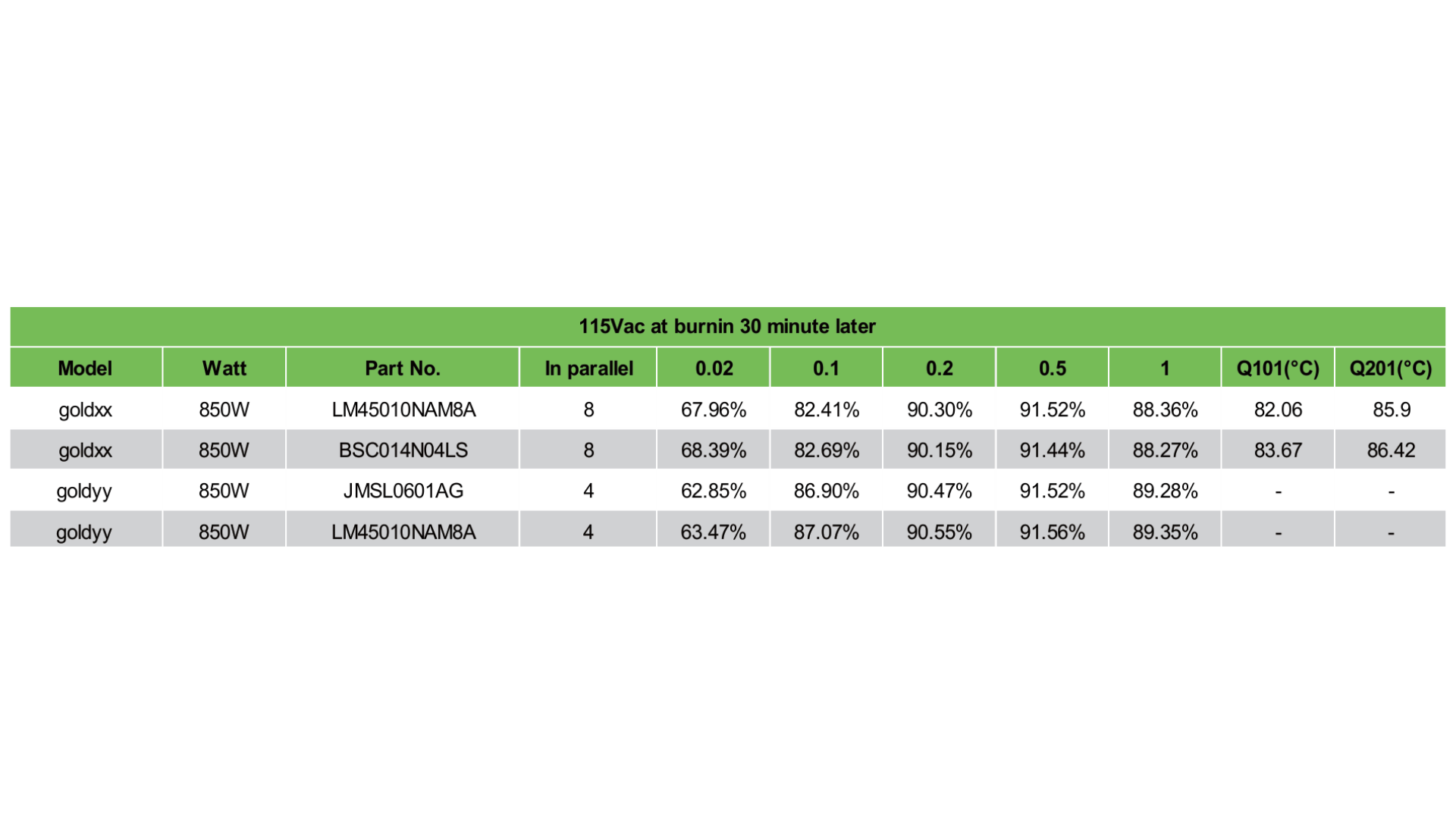

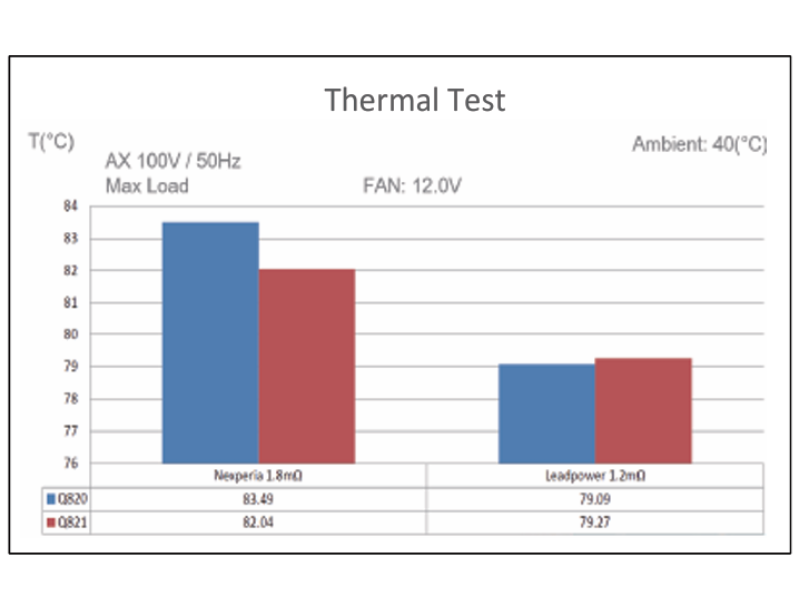

Thermal performance remains within safe operating limits, with Q101 and Q201 temperatures well-regulated.
These results validate the reliability and efficiency of the selected MOSFETs, making them ideal for high-power
applications requiring consistent performance, low losses, and effective heat dissipation.

Product

Power MOSFET Solution

Part NumberStatusPackageTj max (°C)QualificationConfigurationTypeESD ProtectVDS (V)VGS(±V)ID (A)PD (W)Ron@10V(mΩ)Ron@4.5V(mΩ)Ron@2.5V(mΩ)Ron@1.8V(mΩ)VGS(th)(typV)VGS(th)(maxV)Ciss(pF)Coss(pF)Crss(pF)Qg*(nC)@4.5VQg*(nC)@10VQgs(nC)Qgd(nC)Trr(ns)Qrr(nC)
LM60025NHK8A
Common PartPDFN-56150IndustrialSingleNNA60201421253.3---345607118799-83.429.413.65165
LM60025NAK8A
Common PartPDFN-56150IndustrialSingleNNA60201421252.64.2--1.72.5515513311934593.720.420.54544
LM45015NAM8A
Common PartLFPAK56175IndustrialSingleNNA4520207941.4---1.72.3379212607223501255781
LM45013NAM8A
Common PartLFPAK56150IndustrialSingleNNA45202141041.32--1.62.55830143980-87.519.317.345.139
LM45015NHM8A
Common PartLFPAK56175IndustrialSingleNNA4520181941.25---2.93.53504114460-471884870
LM45013NHM8A
Common PartLFPAK56175IndustrialSingleNNA45202341251.1---33.55236148035-6826135563
LM45010NHM8A
Common PartLFPAK56175IndustrialSingleNNA45203231660.8---2.93.562812159103-8325126898
LM45010NAM8A
Common PartLFPAK56175IndustrialSingleNNA45203581670.71.35--1.72.362102064118448717156292
LM40018NHM8A
Common PartPDFN-56175IndustrialSingleNNA402012062.52.4---34216369057-301053222
LM40018NAM8A
Common PartPDFN-56175IndustrialSingleNNA40201326324.4--1.72.32303741731633853627
LM40018NHK8A
Common PartPDFN-56175IndustrialSingleNNA40202111151.7---34678860545380.511345.2362822.4
LM30052NAK8A
Common PartPDFN-56150IndustrialSingleNNA302061315.38.5--1.72.277258840511212712
