PD Adapter
In PD (Power Delivery) adapters, MOSFETs enhance power efficiency and fast charging capabilities. By providing low RDS(on) and high switching speeds, MOSFETs reduce energy loss and heat generation.This ensures stable voltage regulation and efficient power conversion, enabling compact designs with higher power output, making them critical for modern fast-charging PD adapters.
Advantage：
Lenovo motherboards adopt Leadpower’s MOSFETs
LMX30052NAK8A (HS) + LM30026NAK8A (LS).
Compared to existing Chinese competitors, actual test results
with the Richtek RT6576 main control IC at 5V show a significant
temperature advantage and improved efficiency.

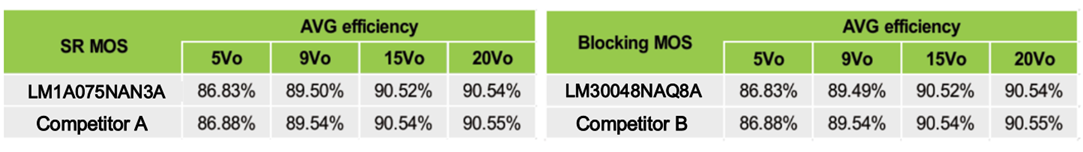

Efficiency_5V
Efficiency_5V
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
