電力(電源)工具是利用電力驅動或操作的工具。

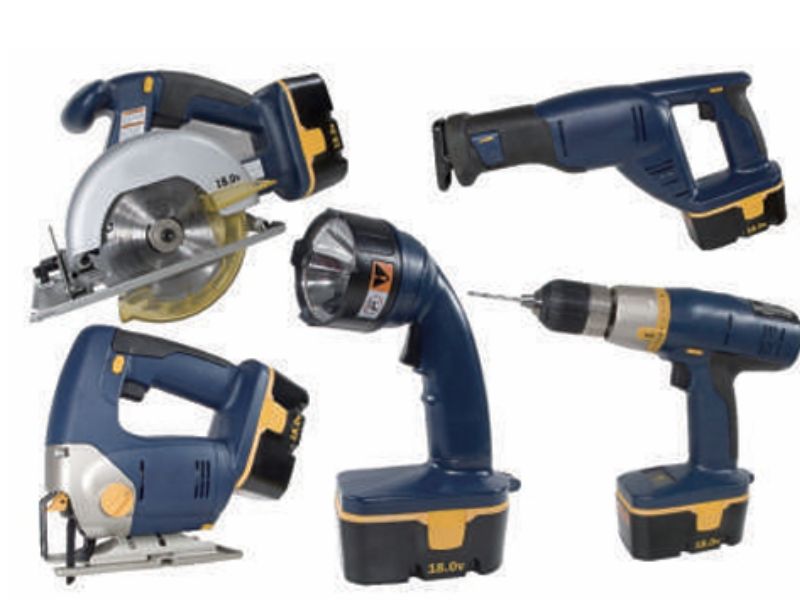

為了達到省時省力，電力工具通常具有高速和高輸出性能，像是手持式工具，例如電動螺絲起、電鑽、電鋸或是電動打磨機等等…
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | TO-252 | 150 | Industrial | Single | N | NA | 150 | 20 | 7.7 | 37 | 255 | 280 | - | - | 2 | 2.5 | 712 | 19 | 7.8 | 6.3 | 13 | 1.86 | 2.4 | 30 | 15 | |
| Common Part | TO-252 | 150 | Industrial | Single | N | NA | 100 | 20 | 12 | 2.1 | 100 | 113 | - | - | 1.7 | 2.5 | 668 | 39 | 17 | 7.25 | 15.3 | 1.9 | 2.9 | 17.6 | 12.6 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 181 | 94 | 1.25 | - | - | - | 2.9 | 3.5 | 3504 | 1144 | 60 | - | 47 | 18 | 8 | 48 | 70 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 234 | 125 | 1.1 | - | - | - | 3 | 3.5 | 5236 | 1480 | 35 | - | 68 | 26 | 13 | 55 | 63 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 45 | 20 | 323 | 166 | 0.8 | - | - | - | 2.9 | 3.5 | 6281 | 2159 | 103 | - | 83 | 25 | 12 | 68 | 98 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 40 | 20 | 120 | 62.5 | 2.4 | - | - | - | 3 | 4 | 2163 | 690 | 57 | - | 30 | 10 | 5 | 32 | 22 | |
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
