Server Hot swap

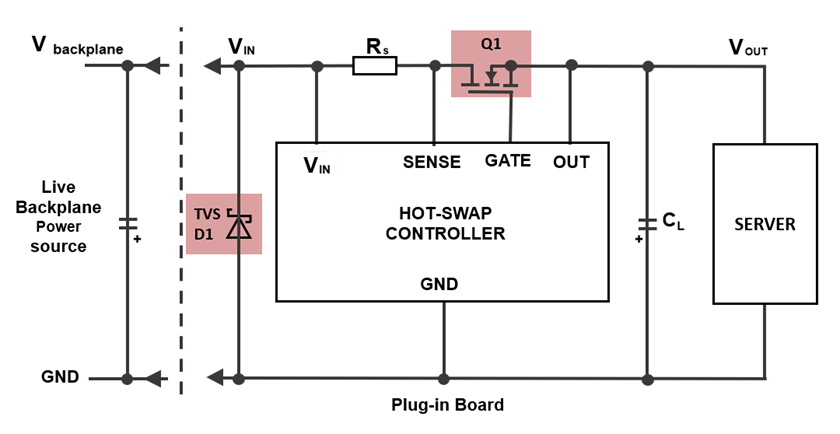

在伺服器的熱插拔應用中，電源MOSFETs在不關機的狀況下，能夠順暢地新增或更換電源轉換器的元件。低Rds(on)的MOSFETs減少工作耗能，確保有效的控制湧浪電流和防突波電流保護。
同時，我們的MOSFETs能提供可靠的快速開關電源管理能力，使系統能在正常運作時間維持伺服器穩定表現。
Ori-PSMN2R6-40YS

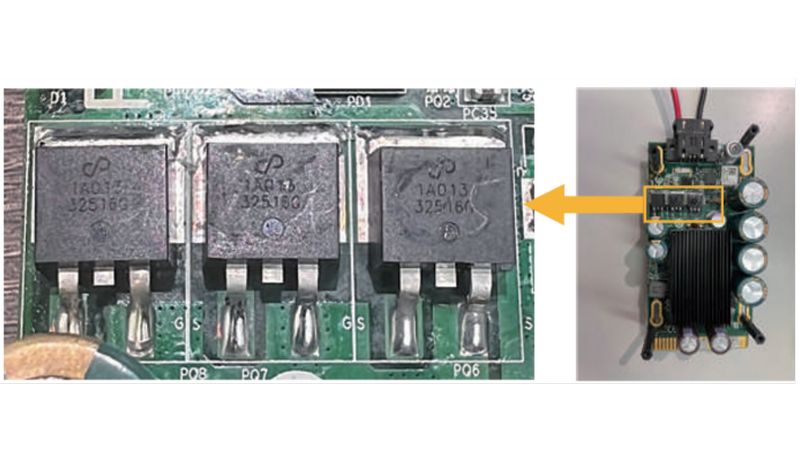

經由實際測試，LM1A013NHV2A和市場上某產品比較，力源的產品達到較佳的表現：高效能和低熱能表現。
且LM1A013NHV2A 在運作期間有較穩定的電壓供給，使元件免於過壓的風險。

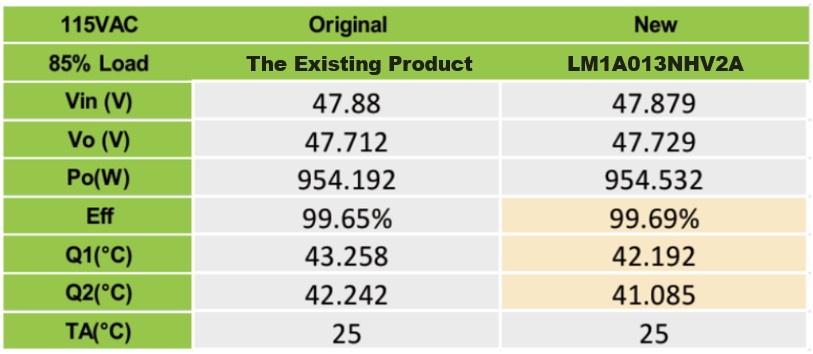

Efficiency Comparison
Product
Power MOSFET Solution
| Part Number | Status | Package | Tj max (°C) | Qualification | Configuration | Type | ESD Protect | VDS (V) | VGS(±V) | ID (A) | PD (W) | Ron@10V(mΩ) | Ron@4.5V(mΩ) | Ron@2.5V(mΩ) | Ron@1.8V(mΩ) | VGS(th)(typV) | VGS(th)(maxV) | Ciss(pF) | Coss(pF) | Crss(pF) | Qg*(nC)@4.5V | Qg*(nC)@10V | Qgs(nC) | Qgd(nC) | Trr(ns) | Qrr(nC) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Part | TOLL | 175 | Industrial | Single | N | NA | 100 | 20 | 434 | 375 | 1.3 | - | - | - | 3 | 4 | 13000 | 2147 | 398 | - | 231 | 70.2 | 65.7 | 120 | 400 | |
| Common Part | TO-220 | 150 | Industrial | Single | N | NA | 100 | 20 | 122 | 125 | 4.8 | - | - | - | 3 | 4 | 4175 | 1190 | 35 | 47(6V) | 72.8 | 21.5 | 20.6 | 40.4 | 80.2 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 122 | 192 | 4.6 | - | - | - | 3 | 4 | 4176 | 1190 | 36 | - | 72.7 | 21.6 | 20.7 | 40.4 | 80.15 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 205 | 192 | 4.6 | 6.6 | - | - | 2 | 3 | 4930 | 1130 | 90 | 47.5 | 93.2 | 20 | 21 | 55 | 84 | |
| Common Part | TO-263 | 175 | Industrial | Single | N | NA | 100 | 20 | 362 | 429 | 1.7 | - | - | - | 3 | 4 | 12345 | 3995 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Common Part | TO-220 | 175 | Industrial | Single | N | NA | 100 | 20 | 243 | 250 | 2.2 | - | - | - | 3 | 4 | 12340 | 3995 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| TOLL | 175 | Industrial | Single | N | NA | 100 | 20 | 229 | 250 | 2.5 | - | - | - | 3 | 4 | 8532 | 2380 | 72 | - | 147.4 | 42.2 | 39.2 | 80.8 | 160.3 | ||
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 204 | 313 | 3.1 | - | - | - | 3 | 4 | 8532 | 2380 | 72 | - | 147.4 | 42.4 | 39.2 | 80.8 | 160.3 | |
| Common Part | TO-263 | 150 | Industrial | Single | N | NA | 100 | 20 | 245 | 284 | 3.2 | - | - | - | 3 | 4 | 7424 | 1983 | 59 | - | 123.6 | 34.7 | 27.6 | 84.9 | 186.5 | |
| Common Part | PDFN-56 | 150 | Industrial | Single | N | NA | 100 | 20 | 142 | 125 | 4.4 | - | - | - | 3 | 4 | 4175 | 1190 | 35 | - | 72.8 | 21.5 | 20.7 | 40.4 | 80.2 | |
| Common Part | TO-263-6 | 175 | Industrial | Single | N | NA | 100 | 20 | 403 | 500 | 1.6 | - | - | - | 3 | 4 | 12340 | 3992 | 37 | 133(6V) | 203 | 60 | 53 | 119 | 347 | |
| Common Part | LFPAK56 | 175 | Industrial | Single | N | NA | 80 | 20 | 200 | 188 | 2.5 | 4.3(6V) | - | - | 2.3 | 3 | 5103 | 1695 | 97 | - | 82 | 22 | 22 | 86 | 84 | |
